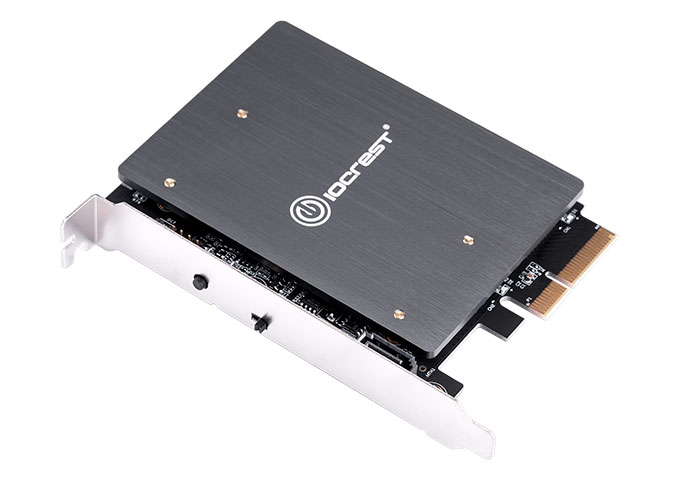

产品简介
•转接功能：该款高速扩展卡可通过PC主机的PCIe x4插槽和SATA接口各转接出1个M.2接口,允许用户连接M.2 PCIe“M Key”SSD和SATA“B Key”SSD。
•RGB灯效：采用RGB灯效，自带9种色彩控制模式，支持1670万色的变幻，并可与华硕、技嘉、微星及华擎四大主板厂商的RGB灯光同步。
•散热设计：全金属散热片外壳设计，有效快速散热，耐磨抗压，保护硬盘，安装简单方便。
特征
•转接能力：转接M.2 SSD使其可用于主板PCIe x4插槽。
•兼容性：易于安装在PCIe Gen3 x4、x8、x16插槽中。
•SSD尺寸支持：支持2230、2242、2260和2280大小的SSD。
•专为M.2设计：专为M.2 PCIe“M Key”SSD和SATA“B Key”SSD设计。
•RGB灯效：自带9种色彩控制模式，支持12V RGB LED主板接头。
•主板RGB同步：支持华硕、技嘉、微星及华擎四大主板厂商的RGB灯光同步灯控。
规格
•PCI Express版本：PCI Express基本规范版本3.0。
•卡机电规范：PCI Express卡机电（CEM）规范第2.0版。
•NVM Express版本：NVM Express 1.3。
操作系统支持
•Windows支持：Windows 7/8/8.1/10 64位。
•UEFI版本：支持UEFI 2.3.1或更高版本。

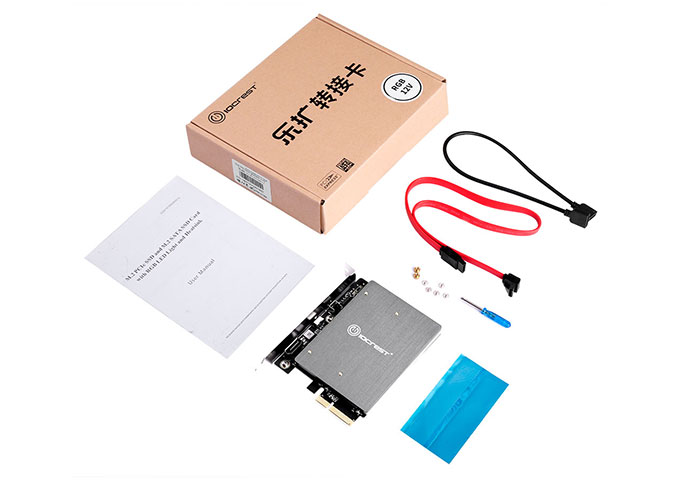

包装内容
•1×PCIe转M.2（1SATA+1PCIe）适配器。
•1×SATA数据线。
•1×12V RGB延长线。
•4×螺丝
•1×螺丝刀。
•1×用户手册。
<p><span style=";font-family:宋体;font-size:14px"> </span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">问：这款</span><span style="font-family:Calibri">RGB</span><span style="font-family:宋体">扩展卡支持转接几种接口</span><span style="font-family:Calibri">?</span><span style="font-family:宋体">支持什么协议的</span><span style="font-family:Calibri">SSD?</span><span style="font-family:宋体">支持哪些尺寸的</span><span style="font-family:Calibri">SSD</span><span style="font-family:宋体">硬盘</span><span style="font-family:Calibri">?</span></span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">答：</span><span style="font-family:Calibri">2</span><span style="font-family:宋体">种接口，分别是</span><span style="font-family:Calibri">M.2 NVMe</span><span style="font-family:宋体">协议的</span><span style="font-family:Calibri">"M Key"SSD</span><span style="font-family:宋体">和</span><span style="font-family:Calibri">M.2 SATA</span><span style="font-family:宋体">协议的</span><span style="font-family:Calibri">"B Key" SSD ,</span><span style="font-family:宋体">支持</span><span style="font-family:Calibri">2230/2242/2260</span><span style="font-family:宋体">和</span><span style="font-family:Calibri">2280 </span><span style="font-family:宋体">大小的</span><span style="font-family:Calibri">SSD</span><span style="font-family:宋体">。</span></span></p><p><span style=";font-family:宋体;font-size:14px"> <br/></span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">问：这款</span><span style="font-family:Calibri">RGB</span><span style="font-family:宋体">扩展卡支持哪些系统？</span></span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">答：</span></span><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">支持</span></span><span style=";font-family:宋体;font-size:14px"><span style="font-family:Calibri">Windows 7/8/8.1/10 64</span><span style="font-family:宋体">位、</span><span style="font-family:Calibri">Linux</span><span style="font-family:宋体">、</span><span style="font-family:Calibri">Mac OS 10.12</span><span style="font-family:宋体">、</span><span style="font-family:Calibri">UEFI 2.3.1</span><span style="font-family:宋体">或更高版本</span></span></p><p><span style=";font-family:宋体;font-size:14px"> </span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">问：这款</span><span style="font-family:Calibri">RGB</span><span style="font-family:宋体">扩展卡兼容主板插槽有哪些？</span></span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">答：兼容</span><span style="font-family:Calibri">PCIe Gen3 x4</span><span style="font-family:宋体">、</span><span style="font-family:Calibri">x8</span><span style="font-family:宋体">、</span><span style="font-family:Calibri">x16</span><span style="font-family:宋体">插槽。</span></span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体"><br/></span></span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体"></span></span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">问：这款</span><span style="font-family:Calibri">RGB</span><span style="font-family:宋体">扩展卡支持几种灯效？支持哪些主板厂商灯光同步？</span></span><strong><span style=";font-family:宋体;color:rgb(0,0,255);font-weight:bold;font-size:14px"><span style="font-family:Calibri">------</span><span style="font-family:宋体">型号：</span><span style="font-family:Calibri">IO-PCENSR5</span></span></strong></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">答：用户可通过按钮切换</span><span style="font-family:Calibri">9</span><span style="font-family:宋体">种色彩控制模式，可</span></span><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">与</span></span><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">华硕、技嘉、微星及华擎四大主板厂商主板的灯光同步。支持数位可定址</span><span style="font-family:Calibri">LED </span><span style="font-family:宋体">主板接头</span><span style="font-family:Calibri">(5V) </span><span style="font-family:宋体">。</span></span></p><p><span style=";font-family:宋体;font-size:14px"> </span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">问：这款</span><span style="font-family:Calibri">RGB</span><span style="font-family:宋体">扩展卡支持几种灯效？支持哪些主板厂商灯光同步？</span></span><strong><span style=";font-family:宋体;color:rgb(0,0,255);font-weight:bold;font-size:14px"><span style="font-family:Calibri">-------</span><span style="font-family:宋体">型号：</span><span style="font-family:Calibri">IO-PCENSR12</span></span></strong></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">答：用户可通过按钮切换</span><span style="font-family:Calibri">9</span><span style="font-family:宋体">种色彩控制模式，可</span></span><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">与</span></span><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体">华硕、技嘉、微星及华擎四大主板厂商主板的灯光同步。支持</span><span style="font-family:Calibri">12V RGB LED</span><span style="font-family:宋体">主板接头 。</span></span></p><p><span style=";font-family:宋体;font-size:14px"><span style="font-family:宋体"><br/></span></span><br/></p><p><br/></p>
